Introduction

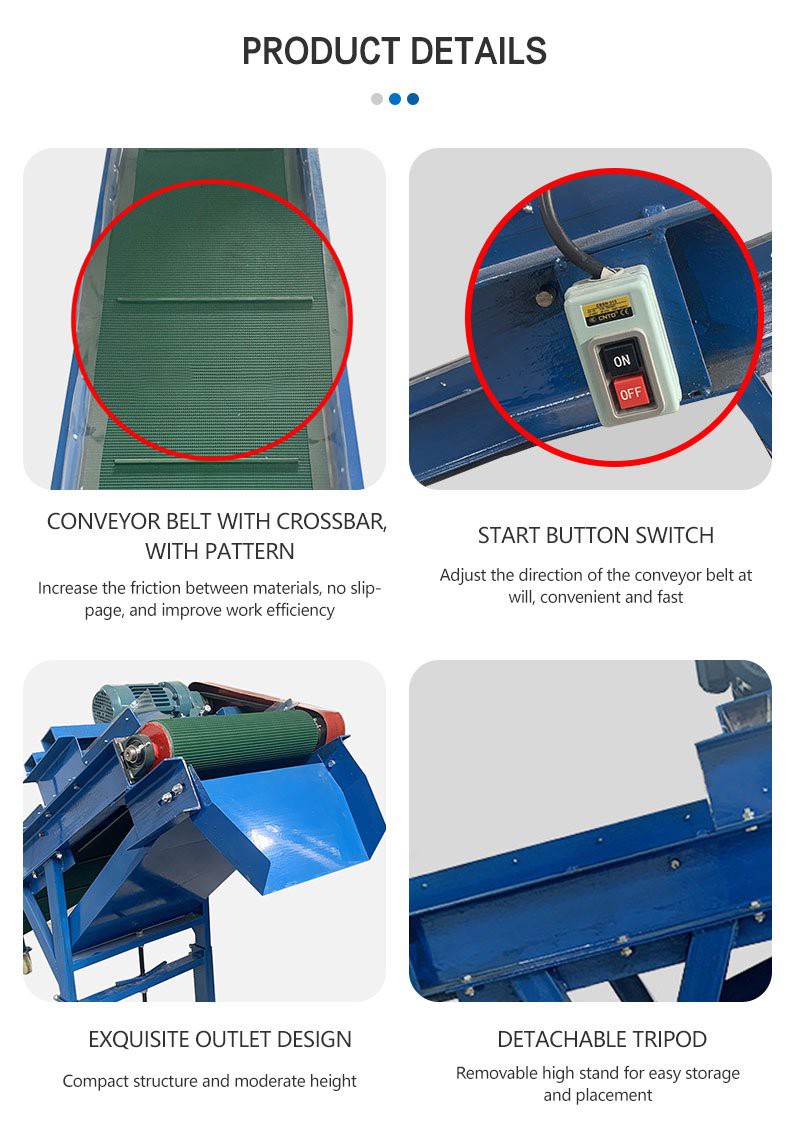

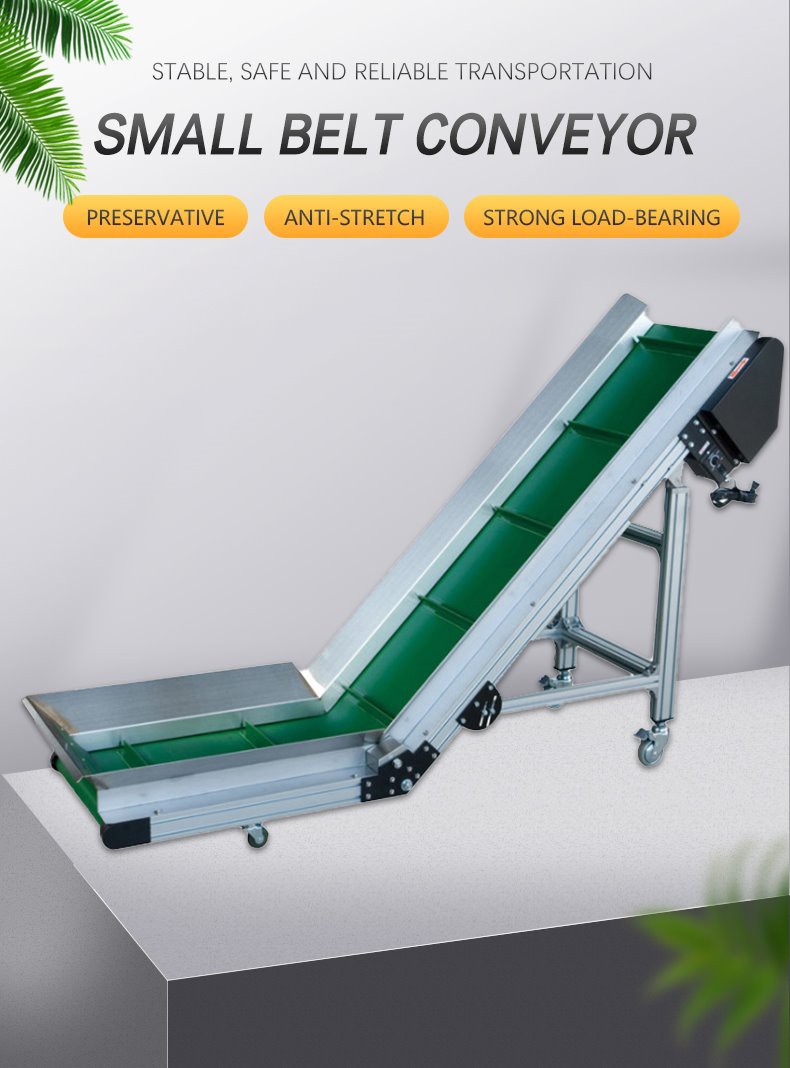

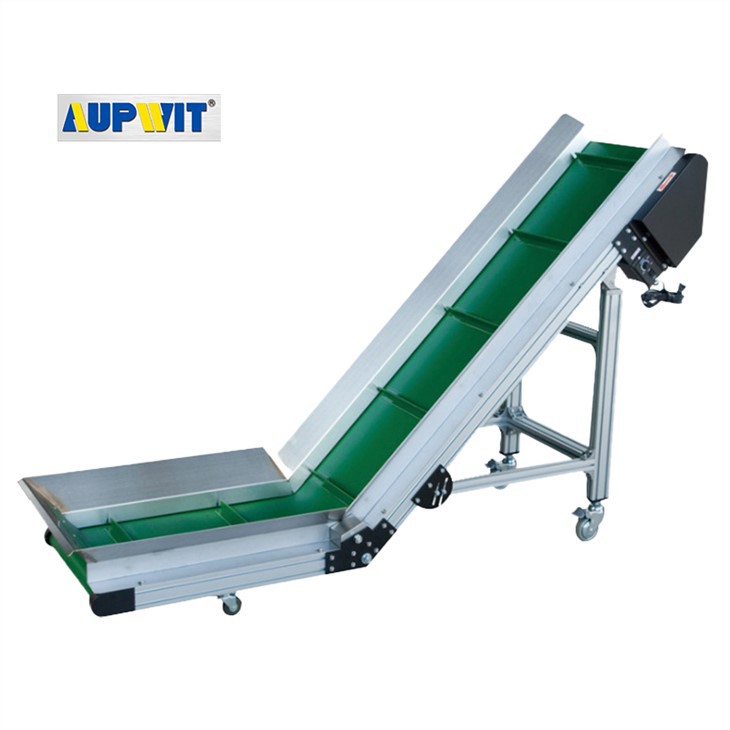

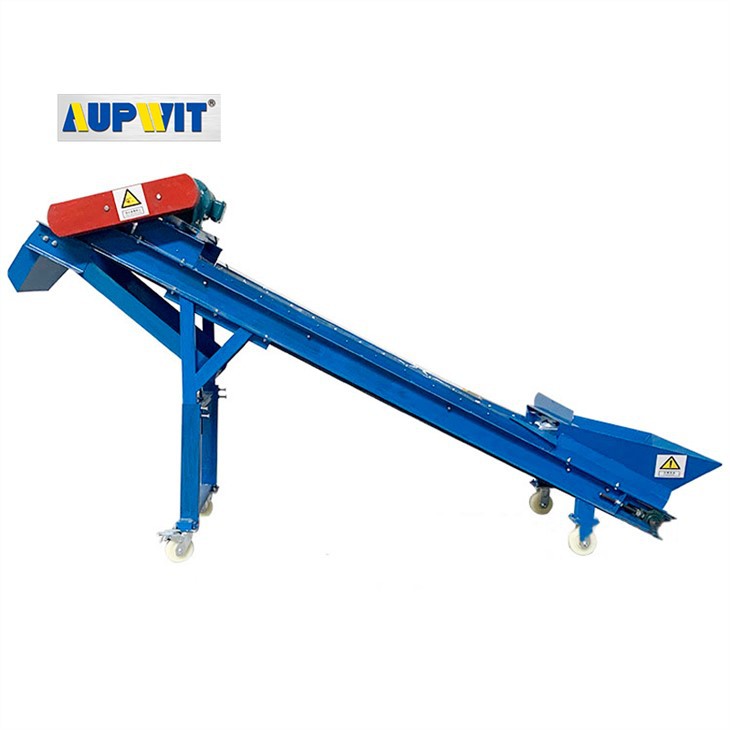

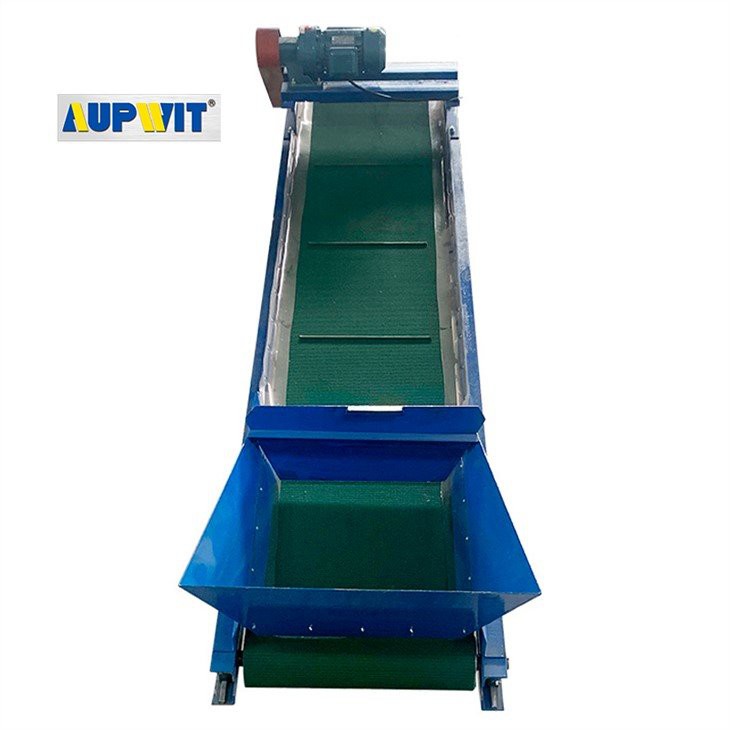

DS Belt Conveyor Systems are used io connect different machines to make a continuous process. It is specially designed for conveying big tire cuts. The machine mainly consists of motor speed reducer, conveying belt, roller, machine frame and blocking plate,etc.
Technical Data
Model | 500 | 650 | 900 |13000 |
Capacity(KgXH) | 200-2000 |
Conveying dlstance(m) | 5-8 |
Convoying hoighl(m) | 2-4 |
Conveying wldth(mm) | 500-1300 |
Conveying speedlm.'Minute) | 2-20 |
Motor power(Kw) | 1.5-3 |
Wepht(T> | 05-1.2 |
Structure and Principle
♦According to conveying materials and connecting machines, different motor power, belt type, conveying speed and blocking plate type lor the conveyor are used.
♦Adjustable upper and lower nders.the rotters have sed- aligning core to avoid slipping or deviation during transportation
♦Direct turbine worm wheel driving, can convoy in horizontal or sideling directions.
♦PLC control system for even and accurate conveying quantity ensure the stability, safety and efficiency of the entire production line.
Product Application
