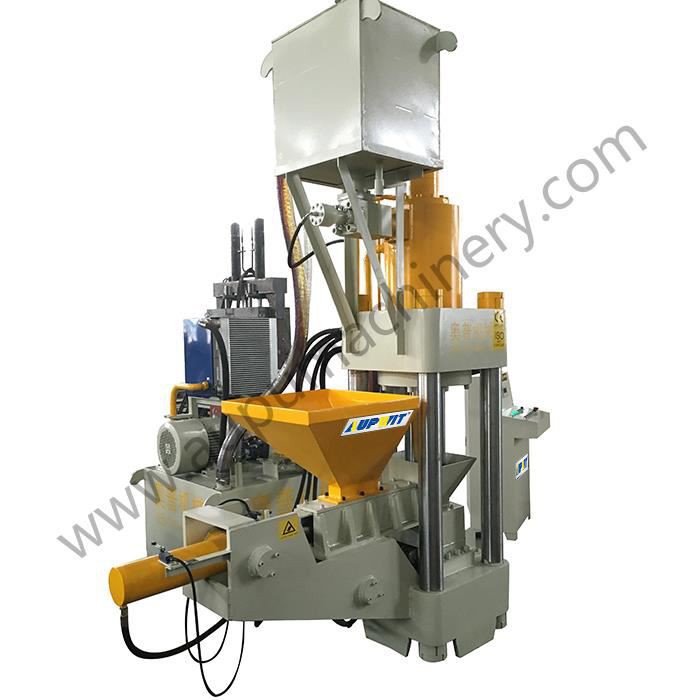

Y83 series cast iron briquetting press machine
Y83 series cast iron briquetting press machine Particle shape cast iron powder, high grade of ductile cast iron, alloy, steel, copper and other metal filings can be cold pressed to cylindrical by Y83 Series briquetting press machine, with density of 5.5-6ton/m3 (adhesion agent is not used) and production of 8-20 tons in every shift. The machine is of a vertical structure with upper and lower beams made of cast steel, and it outputs block automatically once feed with materials. It also can be equipped with different circulation cooling systems.
TYPE | Main cylinder pressure(KN) | Aux. cylinder press(KN) | Motor capacity(kw/h) | productivity(kg/h) | Press block size(mm) |
Y83-160 | 1600 | 80 | 18.5 | 500～800 | Φ90*180 |
Y83-250 | 2500 | 100 | 18.5 | 800～1200 | Φ100*180 |
Y83-315 | 3150 | 120 | 22 | 1200～2000 | Φ110*180 |
Y83-400 | 4000 | 120 | 30/37 | 1800～2600 | Φ120*70～130 |
Y83-500 | 5000 | 120 | 45 | 2000～3000 | Φ140*50～80 |
Welcome to buy the full automatic iron powder briquetting press with conveyor good price made in China from our factory. As one of the leading such manufacturers and suppliers in China, we will offer you now only the best quality products but also excellent service.
