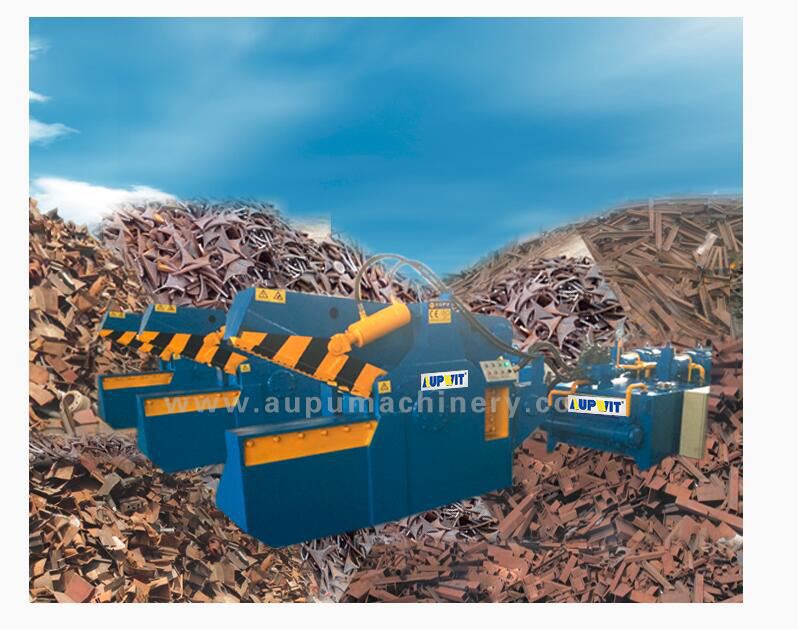

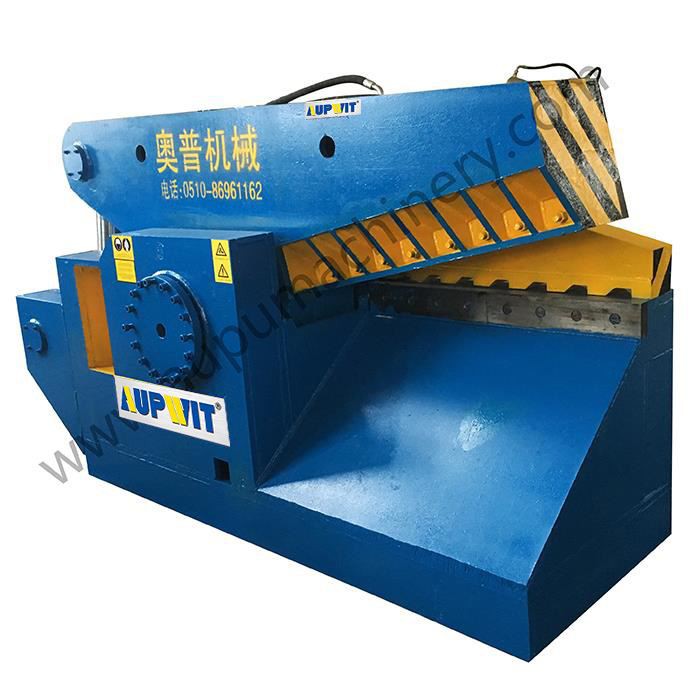

Q43 series Corcodile shear machine
Hydraulisk Press, Q43 series crocodile type metal shear is suitable to shear various sharps of profiled bar and varieties of metal structure parts at cold condition for metal recovery companies, waste steel works, smelting and casting enterprises.
PRODUCT FEATURES：
1.Hydraulic driving,easy operation,easy maintenance.
2.Work knife edge length:400mm,600mm,700mm,800mm,1000mm, 1200mm. The shearing force has 8classes from 63 tons to 400 tons.The shear with over 700mm knife edge can be used to shear waste car.
3.No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
Features
o1.the machine is mainly used for all kinds of waste metal hot-rolled steel profile(e.g. channels steel Angles joists steel plate steel pipes and all kinds of waste metal structure of cold cut and the thickness of the thin metal scrap 3mm acuities were extrusion with packaging.)
o2.the hydraulic transmission stable performance work safety and reliable low noise small automatic overload protectionetc.Because the machine adopts the hydraulic manual controlit has simple operationconvenient useetc
Details
Q43 series crocodile type metal shear is suitable to shear various sharps of profiled bar and varieties of metal structure parts at cold condition for metal recovery companies, waste steel works, smelting and casting enterprises.
PRODUCT FEATURES：
1.Hydraulic driving,easy operation,easy maintenance.
2.Work knife edge length:400mm,600mm,700mm,800mm,1000mm, 1200mm. The shearing force has 8classes from 63 tons to 400 tons.The shear with over 700mm knife edge can be used to shear waste car.
3.No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
Features
1.the machine is mainly used for all kinds of waste metal hot-rolled steel profile(e.g. channels steel Angles joists steel plate steel pipes and all kinds of waste metal structure of cold cut and the thickness of the thin metal scrap 3mm acuities were extrusion with packaging.)
2.the hydraulic transmission stable performance work safety and reliable low noise small automatic overload protectionetc.Because the machine adopts the hydraulic manual controlit has simple operationconvenient useetc
| Type | Max. material pressure(t) | Dnife dege length (mm) | Max. opening mouth (mm) | Shearing time per min | Dimension of main sheared material | Total power of machine(kw) | Operational methed |
| Q43-63 | 63 | 400 600 800 | 200 600 800 | 10～14 | 30*30Φ35 | 7.5 | Manual feeding manual or automatic |
| Q43-100 | 100 | 600 | 280 | 10～14 | 40*40Φ45 | 7.5 | |
| Q43-100A | 100 | 800 | 320 | 10～14 | 40*40Φ45 | 11 | |
| Q43-120 | 120 | 600 | 280 | 10～13 | 45*45Φ50 | 15 | |
| Q43-130 | 130 | 600 | 320 | 10～13 | 45*45Φ50 | 18.5 | |
| Q43-160 | 160 | 700 | 320 | 10～12 | 55*55Φ63 | 18.5 | |
| Q43-160A | 160 | 800 | 350 | 10～12 | 55*55Φ63 | 18.5 | |
| Q43-200 | 200 | 800 | 380 | 9～12 | 60*60Φ65 | 22 | |
| Q43-250 | 250 | 1000 | 450 | 8～12 | 70*70Φ75 | 30 | |
| Q43-315 | 315 | 1200 | 520 | 8～11 | 80*80Φ85 | 37 | |
| Q43-400 | 400 | 1500 | 660 | 8～11 | 90*90Φ95 | 44 | |
| Q43-500 | 500 | 1800 | 690 | 6～10 | Φ120 | 60 |
Welcome to buy the good quality double-edged crocodile-type hydraulic shearing machine made in China from our factory. As one of the leading such manufacturers and suppliers in China, we will offer you now only the best quality products but also excellent service.
