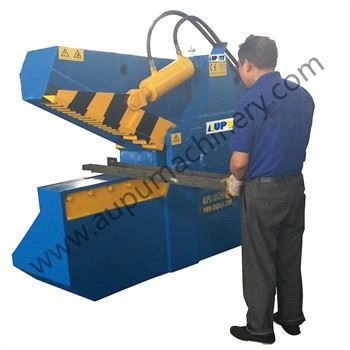

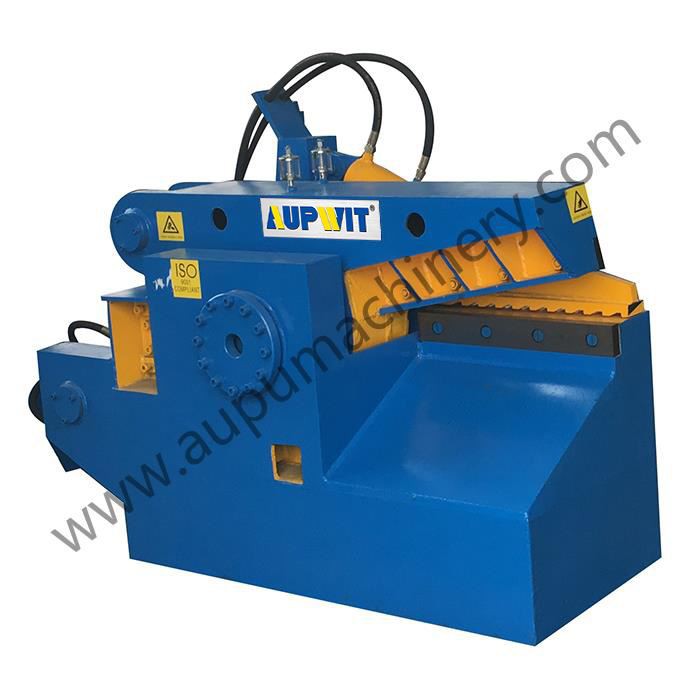

Q43 series Corcodile shear machine
This machine is used for a variety of cross-section shapes such as round steel, square steel, Angle steel, i-steel, plate steel, steel pipe, such as waste of cold shear, hot rolled small scale cut steel, steel rolling mills scale cutting, etc
The properties and advantages:
1, this equipment adopts hydraulic transmission, compared with the mechanical drive type shears, has small volume, light weight, small inertia, low noise, stable movement, convenient operation, flexible, large shear section, scissors, convenient adjustment, the use of safe operation, easy to realize overload protection.
2, this equipment has the function of manual and automatic, convenient operation, simple control, scissors mouth work in any position in the process of starting cut and stop, and can according to the size of the cut materials, arbitrary control cut the size of the mouth, in order to obtain the highest working efficiency.
3, this equipment design of fast, without any increase in power of the motor and pump displacement condition, in (about 250 tons) under shear speed fast, larger shear material automatically converting speed.Recover the original shear force, so as to improve the work efficiency nearly doubled.
4, the piston adopts the BSF overseas to ring seal, not only can keep the shear stress under high oil temperature constant, but in the long run or high oil temperature conditions remained constant shear force.These advantages can improve the native quality grade, prolong the service life of the machine.
5, the machine with rapid device.Without any increase in motor and oil pump displacement under the condition of power, design the fast loop, shear rate per minute by the original 8 to 12 times per minute (scissors mouth when the largest number), improve working efficiency nearly doubled.
Details
Q43 series crocodile type metal shear is suitable to shear various sharps of profiled bar and varieties of metal structure parts at cold condition for metal recovery companies, waste steel works, smelting and casting enterprises.
PRODUCT FEATURES：
1.Hydraulic driving,easy operation,easy maintenance.
2.Work knife edge length:400mm,600mm,700mm,800mm,1000mm, 1200mm. The shearing force has 8classes from 63 tons to 400 tons.The shear with over 700mm knife edge can be used to shear waste car.
3.No requirements of foundation bolts for installation, the diesel may be used for driving at the place without power supplying.
Features
1.the machine is mainly used for all kinds of waste metal hot-rolled steel profile(e.g. channels steel Angles joists steel plate steel pipes and all kinds of waste metal structure of cold cut and the thickness of the thin metal scrap 3mm acuities were extrusion with packaging.)
2.the hydraulic transmission stable performance work safety and reliable low noise small automatic overload protectionetc.Because the machine adopts the hydraulic manual controlit has simple operationconvenient useetc
| Type | Max. material pressure(t) | Dnife dege length (mm) | Max. opening mouth (mm) | Shearing time per min | Dimension of main sheared material | Total power of machine(kw) | Operational methed |
| Q43-63 | 63 | 400 600 800 | 200 600 800 | 10～14 | 30*30Φ35 | 7.5 | Manual feeding manual or automatic |
| Q43-100 | 100 | 600 | 280 | 10～14 | 40*40Φ45 | 7.5 | |
| Q43-100A | 100 | 800 | 320 | 10～14 | 40*40Φ45 | 11 | |
| Q43-120 | 120 | 600 | 280 | 10～13 | 45*45Φ50 | 15 | |
| Q43-130 | 130 | 600 | 320 | 10～13 | 45*45Φ50 | 18.5 | |
| Q43-160 | 160 | 700 | 320 | 10～12 | 55*55Φ63 | 18.5 | |
| Q43-160A | 160 | 800 | 350 | 10～12 | 55*55Φ63 | 18.5 | |
| Q43-200 | 200 | 800 | 380 | 9～12 | 60*60Φ65 | 22 | |
| Q43-250 | 250 | 1000 | 450 | 8～12 | 70*70Φ75 | 30 | |
| Q43-315 | 315 | 1200 | 520 | 8～11 | 80*80Φ85 | 37 | |
| Q43-400 | 400 | 1500 | 660 | 8～11 | 90*90Φ95 | 44 | |
| Q43-500 | 500 | 1800 | 690 | 6～10 | Φ120 | 60 |
Welcome to buy the hot sale scrap metal guillotine shear machine made in China from our factory. As one of the leading such manufacturers and suppliers in China, we will offer you now only the best quality products but also excellent service.
