Baler Press for Steel Scrap Factory Direct Sale - Jiangyin Aupu Machinery Co.,Ltd

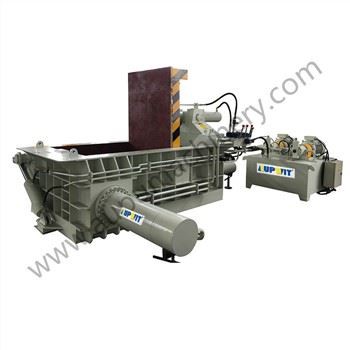

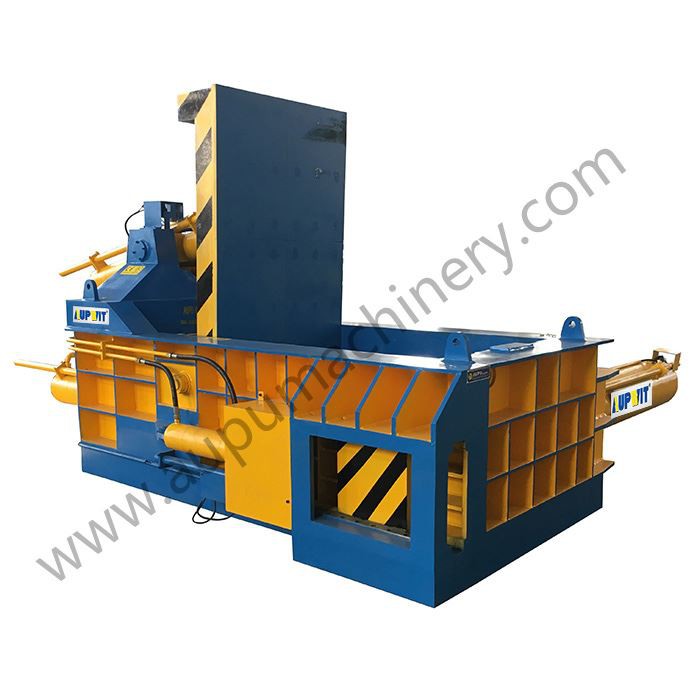

Y81 series scrap steel baler machine

Y81 series scrap steel baler machine mainly used in baler press the scrap steel, iron, copper, scrap aluminum scrap metal. Scrap steel baler machine in scrap metal recycling, rolling mills, stainless steel plant, machinery plant size of the most widely used;And companies.

Features

1.The hydraulic driving is adopted for all types of machines. The manual and PC automatic control operations are optional.

2.No foundation bolts for installation. The diesel engine can be equipped as driving at the place without power supply.

3.Turning over bag type and pushing bag type are used for bag coming out.

4.Extruding force has 8 classes from 63 tons to 400 tons and production rate is from 0.5 tons per hour to

Type	Nominal push force(kn)	mm Dimension of compressed room(L×W×H)mm	mmPackage block dimension(L×W)mm	Production efficiency(Kg/h)	Single cycle time(s)	Matched capacity(KW)	Bag coming out/ operational method


Y81F-63X	630	800×500×450	200×200	800~1000	≤75	7.5	TurnManual operation
Y81F-100	1000	1000×700×550	250×250	1200~1500	≤85	11	TurnManual operation
Y81F-125A	1250	1200×700×600	300×300	1200~1800	≤110	15	TurnManual operation
Y81F-125C	1250	1200×700×600	250×250	1200~1700	≤115	15	TurnManual operation
Y81F-135	1350	1400×900×700	350×350	1800~2200	≤120	22	TurnManual operation
Y81F-160	1600	1400×900×800	350×350	2000~3000	≤150	22	TurnManual operation
Y81F-160A	1600	1600×1000×800	400×400	2000~3500	≤150	22	TurnManual operation
Y81F-160B	1600	1600×1200×800	400×400	2000~4000	≤150	30	TurnManual operation
Y81F-200A	2000	1600×1200×800	450×450	2500~4500	≤160	30、37	TurnManual operation
Y81F-200B	2000	1800×1200×900	500×500	3000~5000	≤160	37、44	TurnManual operation
Y81F-200C	2000	2000×1400×900	500×500	3500~5500	≤160	44	TurnManual operation
Y81F-250A	2500	1800×1200×900	500×500	4000~6300	≤160	44、60	TurnManual operation
Y81F-250B	2500	2000×1400×900	500×500	5000~6300	≤160	44、60、74	TurnManual operation
Y81F-250C	2500	2000×1750×1200	500×500	5500~6500	≤160	60	TurnManual operation
Y81F-250D	2500	2500×2000×1200	500×500	5500~6500	≤160	60、74	TurnManual operation
Y81F-250E	2500	3000×2500×1200	500×500	5500~6500	≤160	60、74	TurnManual operation
Y81F-315A	3150	2000×1400×1200	500×500	5000~6500	≤160	60、74	TurnManual operation
Y81F-315B	3150	2000×1750×1200	600×600	5000~7000	≤160	60、74	TurnManual operation
Y81F-315C	3150	2500×2000×1200	600×600	6000~7500	≤180	74	TurnManual operation
Y81F-315D	3150	3000×2500×1300	700×700	7000~8000	≤180	90	TurnManual operation
Y81F-400A	4000	2000×1600×1200	600×600	5000~7000	≤160	74	TurnManual operation
Y81F-400B	4000	2500×2000×1200	600×600	7500~9000	≤180	90	TurnManual operation
Y81F-400C	4000	3000×2000×1300	700×700	8000~10000	≤180	90	TurnManual operation
Y81F-400D	4000	3000×2500×1300	700×700	9000~12000	≤190	135	TurnManual operation

Type	Nominal push force(kn)	mm Dimension of compressed room(L×W×H)mm	mmPackage block dimension(L×W)mm	Production efficiency(Kg/h)	Single cycle time(s)	Matched capacity(KW)	Bag coming out/ operational method


Y81T-100	1000	1000×700×550	250×250	1200~1500	≤85	11	Side pushManual operation
Y81T-125A	1250	1200×700×600	300×300	1200~1800	≤110	15	Side pushManual operation
Y81T-125Y	1250	1200×700×600	Ф200	1200~1700	≤115	15	Side pushManual operation
Y81T-135	1350	1400×900×700	350×350	1800~2200	≤120	22	Side pushManual operation
Y81T-160	1600	1400×900×800	350×350	2000~3000	≤150	22	Side pushManual operation
Y81T-160A	1600	1600×1000×800	400×400	2000~3500	≤150	22	Side pushManual operation
Y81T-160B	1600	1600×1200×800	400×400	2000~4000	≤150	30	Side pushManual operation
Y81T-200A	2000	1600×1200×800	450×450	2500~4500	≤160	30、37	Side pushManual operation
Y81T-200B	2000	1800×1200×900	500×500	3000~5000	≤160	37、44	Side pushManual operation
Y81T-200C	2000	2000×1400×900	500×500	3500~5500	≤160	44	Side pushManual operation
Y81T-250A	2500	1800×1200×900	500×500	4000~6300	≤160	44、60	Side pushManual operation
Y81T-250B	2500	2000×1400×900	500×500	5000~6300	≤160	44、60、74	Side pushManual operation
Y81T-250C	2500	2000×1750×1200	500×500	5500~6500	≤160	60	Side pushManual operation
Y81T-250D	2500	2500×2000×1200	500×500	5500~6500	≤160	60、74	Side pushManual operation
Y81T-250E	2500	3000×2500×1200	500×500	5500~6500	≤160	60、74	Side pushManual operation
Y81T-315A	3150	2000×1400×1200	500×500	5000~6500	≤160	60、74	Side pushManual operation
Y81T-315B	3150	2000×1750×1200	600×600	5000~7000	≤160	60、74	Side pushManual operation
Y81T-315C	3150	2500×2000×1200	600×600	6000~7500	≤180	74	Side pushManual operation
Y81T-315D	3150	3000×2500×1300	700×700	7000~8000	≤180	90	Side pushManual operation
Y81T-400A	4000	2000×1600×1200	600×600	5000~7000	≤160	74	Side pushManual operation
Y81T-400B	4000	2500×2000×1200	600×600	7500~9000	≤180	90	Side pushManual operation
Y81T-400C	4000	3000×2000×1300	700×700	8000~10000	≤180	90	Side pushManual operation
Y81T-400D	4000	3000×2500×1300	700×700	9000~12000	≤190	135	Side pushManual operation

Type	Nominal push force(kn)	mm Dimension of compressed room(L×W×H)mm	mmPackage block dimension(L×W)mm	Production efficiency(Kg/h)	Single cycle time(s)	Matched capacity(KW)	Bag coming out/ operational method


Y81Q-63	630	600×500×500	500×220	600~1000	≤75	7.5	front of push Manual operation
Y81Q-100	1000	1100×600×550	600×220	1000~1800	≤85	11	front of push Manual operation
Y81Q-135A	1350	1400×600×600	600×240	1500~2800	≤80	22	front of push Manual operation
Y81Q-135B	1350	1100×600×600	600×240	1200~1700	≤100	15、18.5	front of push Manual operation
Y81Q-160	1600	1450×600×600	600×300	2000~3000	≤110	22	front of push Manual operation
Y81Q-200	1600	1450×700×600	700×300	2800~3500	≤110	30	front of push Manual operation
Y81Q-250	1600	1800×900×700	900×350	4500~6500	≤130	44	front of push Manual operation
