Y81 Series Scrap Metal Baler - Jiangyin Aupu Machinery Co.,Ltd

Introduction

Aupwit set up 15 years, the continuous improvement of the quality of the Scrap Metal Baler machine, the training of workers, technology, to constantly improve customer service, exports from 10% to 80%.

Through strict control of the quality of the Baler machine, so far,We has received a machine ISO, CE, SGS, TUV, BV, SONCAP and other certificates.

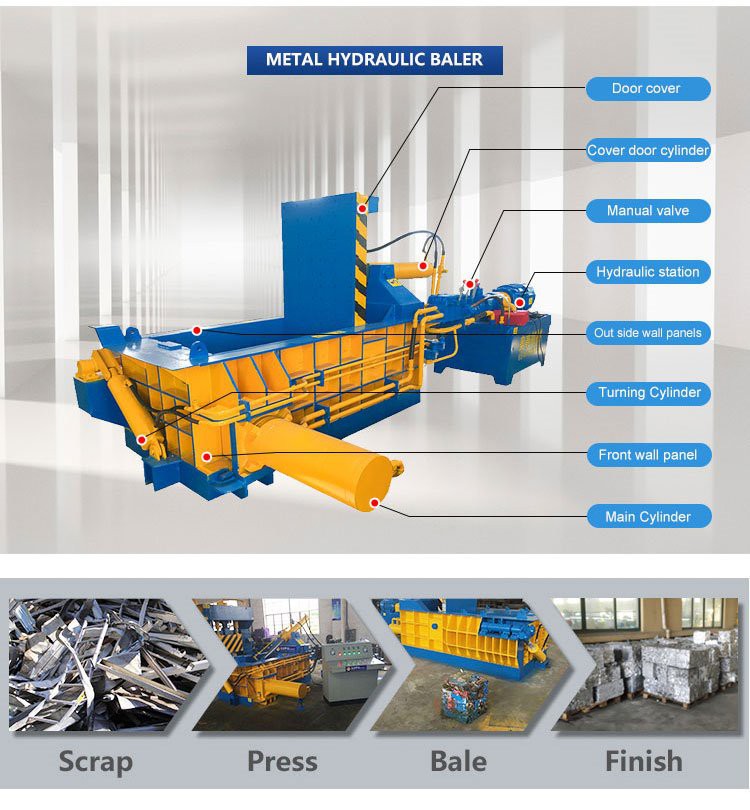

Y81 Metal Hydraulic Baler

Technical Data

型号 Type	公称推力（KN）Nominal push force(kn)	压缩室尺寸（长X宽X高）mm Dimension of compressed room(L×W×H)mm	包块尺寸 (长×宽)mmPackage block dimension(L×W)mm	生产效率(Kg/h) Production efficiency(Kg/h)	单次循环时间(s) Single cycle time(s)	功率(KW) Matched capacity(KW)	出包/操作方式 Bag coming out/ operational method
Y81F-63X	630	800×500×450	200×200	800~1000	≤75	7.5	翻包,手动操作 Turn,Manual operation
Y81F-100	1000	1000×700×550	250×250	1200~1500	≤85	11	翻包,手动操作 Turn,Manual operation
Y81F-125A	1250	1200×700×600	300×300	1200~1800	≤110	15	翻包,手动操作 Turn,Manual operation
Y81F-125C	1250	1200×700×600	250×250(八角包)	1200~1700	≤115	15	翻包,手动操作 Turn,Manual operation
Y81F-135	1350	1400×900×700	350×350	1800~2200	≤120	22	翻包,手动操作 Turn,Manual operation
Y81F-160	1600	1400×900×800	350×350	2000~3000	≤150	22	翻包,手动操作 Turn,Manual operation
Y81F-160A	1600	1600×1000×800	400×400	2000~3500	≤150	22	翻包,手动操作 Turn,Manual operation
Y81F-160B	1600	1600×1200×800	400×400	2000~4000	≤150	30	翻包,手动操作 Turn,Manual operation
Y81F-200A	2000	1600×1200×800	450×450	2500~4500	≤160	30、37	翻包,手动操作 Turn,Manual operation
Y81F-200B	2000	1800×1200×900	500×500	3000~5000	≤160	37、44	翻包,手动操作 Turn,Manual operation
Y81F-200C	2000	2000×1400×900	500×500	3500~5500	≤160	44	翻包,手动操作 Turn,Manual operation
Y81F-250A	2500	1800×1200×900	500×500	4000~6300	≤160	44、60	翻包,手动操作 Turn,Manual operation
Y81F-250B	2500	2000×1400×900	500×500	5000~6300	≤160	44、60、74	翻包,手动操作 Turn,Manual operation
Y81F-250C	2500	2000×1750×1200	500×500	5500~6500	≤160	60	翻包,手动操作 Turn,Manual operation
Y81F-250D	2500	2500×2000×1200	500×500	5500~6500	≤160	60、74	翻包,手动操作 Turn,Manual operation
Y81F-250E	2500	3000×2500×1200	500×500	5500~6500	≤160	60、74	翻包,手动操作 Turn,Manual operation
Y81F-315A	3150	2000×1400×1200	500×500	5000~6500	≤160	60、74	翻包,手动操作 Turn,Manual operation
Y81F-315B	3150	2000×1750×1200	600×600	5000~7000	≤160	60、74	翻包,手动操作 Turn,Manual operation
Y81F-315C	3150	2500×2000×1200	600×600	6000~7500	≤180	74	翻包,手动操作 Turn,Manual operation
Y81F-315D	3150	3000×2500×1300	700×700	7000~8000	≤180	90	翻包,手动操作 Turn,Manual operation
Y81F-400A	4000	2000×1600×1200	600×600	5000~7000	≤160	74	翻包,手动操作 Turn,Manual operation
Y81F-400B	4000	2500×2000×1200	600×600	7500~9000	≤180	90	翻包,手动操作 Turn,Manual operation
Y81F-400C	4000	3000×2000×1300	700×700	8000~10000	≤180	90	翻包,手动操作 Turn,Manual operation
Y81F-400D	4000	3000×2500×1300	700×700	9000~12000	≤190	135	翻包,手动操作 Turn,Manual operation

Equipment characteristics

1. Advanced computer image processing system, a friendly user interface;

2. A overall grading by size, shape, color, defects(determined by sorting varieties);

3. The treated fruit surface color is bright, with the same size;

4. Fast and accurate sorting per customer request;

5. Save manpower and improve production efficiency;

Y81 Sheet Metal Baler
