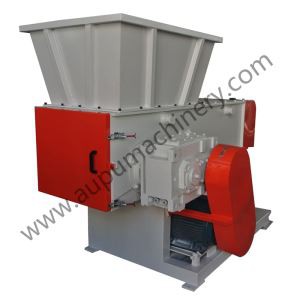

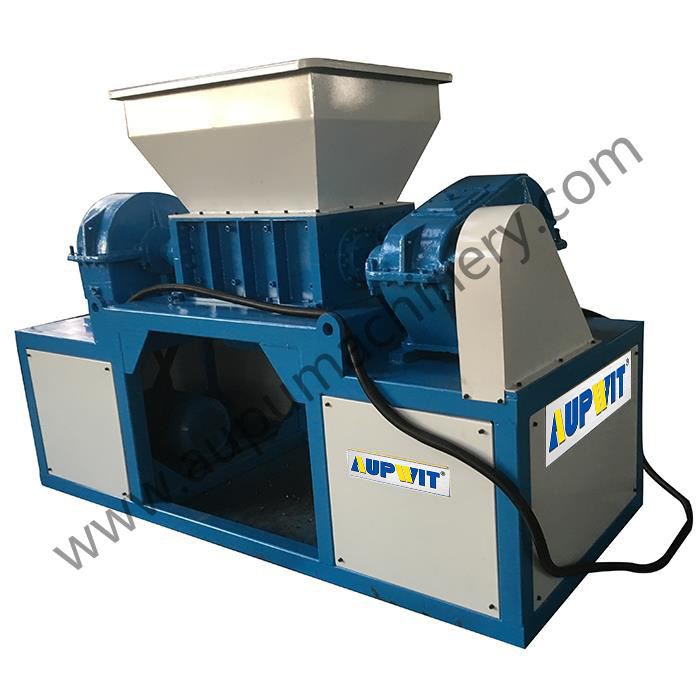

KSB series of waste shredder machine features
Safety devices in line with European CE certification.
Various rotor configurations available for processing a wide range of materials.
Made with hard tooth surface reducer, safety smoothly.
Heavy moving blade, high grinding efficiency, the knife and blade are made of alloy steel casting, strong, long service life.
Easy to adjust, low maintenance cost, economic and durable, the equipment is low speed, high torque, low noise, etc
Microcomputer automatic control (PLC), set to start, stop, reverse and overload automatic inversion of control function.
Applications
Suitable for heavy pieces, thick and hard material, such as: to shred car shell, solid industrial waste, medical waste, electronic waste, plastic buckets, plastic boxes, plastic bottles, metal cans and metal barrels, woven bags, wood, refrigerator, circuit boards and carton or other materials.
Technical parameter
| Type | Motor(KW) | Diameter of blade (mm) | Speed(rpm) | Rotating knife(pcs) | Materials of blades | Weight(kg) |
| XR600 | 7.5+7.5 | Ф280 | 15~24 | 20 | SKD11/D2/DC53 | 2000 |
| XR800 | 15+15/18.5+18.5 | Ф280 | 15~24 | 20 | SKD11/D2/DC53 | 3400 |
| XR1000 | 22+22 | Ф300 | 15~24 | 20 | SKD11/D2/DC53 | 4500 |
| XR1200 | 30+30/37+37 | Ф400 | 14~18 | 24 | SKD11/D2/DC53 | 6500 |
| XR1500 | 45+45/55+55 | Ф500 | 10~18 | 30 | SKD11/D2/DC53 | 9000 |
